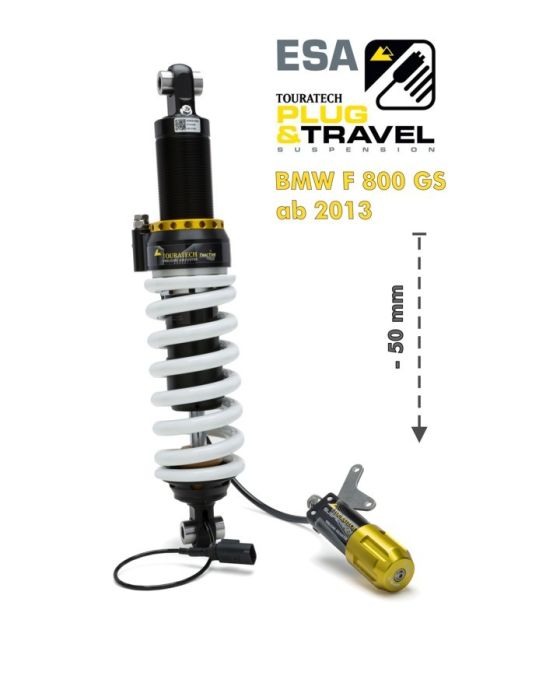

Touratech Suspension, lowering by -50mm for BMW F800GS from 2013 Type: Plug & Travel for BMW ESA

This Plug & Travel shockabsorber for the BMW ESA is perfectly suited for reducing the seat height (-5cm) of the BMW F800GS fitted with ESA. At the same time. your BMW F800GS remains well suited for touring. The shockabsorber is simply swapped for the BMW ESA shockabsorber. The available plugs and the switches on the handlebar are used as usual. Thus. the Touratech suspension shock is integrated into the motorcycle via the original BMW controls. This allows you to continue using the damper settings on the handlebar and the BMW display. The Touratech suspension shock which adapts to your adventures. All you need to do is ride.
Out of stock Available to Backorder
SKU
01-048-5877-0
£1,294.00

Free Delivery on orders over £99

Questions about this product? Give us a ring: 01639 841765


This shortened Touratech Suspension Plug & Travel shockabsorber is manufactured with the same precision components and assemblies which have proven themselves in our shocks over thousands of kilometers of travelling under the toughest conditions. For you this means: With this shorter shockabsorber. the load is easily and quickly adjusted per handwheel via the hydraulic spring preload. The unique. solid. hydraulic Touratech spring preload with its large adjustment range. ensures that the balance of your motorcycle ist set optimally. The heart of this suspension setup is a stepper motor adapted to the BMW ESA and integrated in the shockabsorber. This stepper motor allows the setting of optimal damping with the original BMW switch on the handlebar to the desired setting of comfort. normal or sporty.Note:For the secure stand of your BMW F800GS after lowering the suspension componets. we recommend the shortened side stand and/or optionally the shorteneded main stand. These components are available from your BMW dealer.



This Touratech Suspension Plug & Travel shock is manufactured with the same precision components and assemblies that have proven themselves on thousands of kilometres in our shocks under the toughest conditions. For you this means: Adjustment to any volume of luggage. ranging from a rear bag to a loaded luggage system and/or with a passenger. is performed easily and quickly by hand wheel via the hydraulic spring pre-tension. The unique. robust hydraulic Touratech spring pre-tension compensates for weekend tours. large luggage or your long-distance tour using the Extreme setting range. The balance of your motorcycle is set perfectly.
The heart of this suspension system is a stepping motor specially adapted to the BMW ESA and integrated in the shock. This stepping motor allows optimal damping via the original BMW switch on the handlebar to the desired setting. comfort. normal or sport.

The Touratech Suspension Plug & Travel for BMW ESA is a premium class product in terms of chassis technology. This shock is developed for touring and riding under frequent and strongly varying load and riding conditions and high demands.

You will experience a completely new ride with your motorbike.

The salient features and facts of the Plug & Travel shock:
=> This shockabsorber is configured on the basis of our experience with the BMW F800GS and is set "ready-to-ride".
=> Parameters include weight of the vehicle / pivot of the shock / constructional conditions / test rides.
=> The shockabsorber described here is designed for up to 100 kg weight of the rider including travel luggage.
=> The rear and front sections of the motorcycle should be adjusted for all chassis solutions.
=> The suitable component for the front of the BMW F800GS is here:
=> Progressive fork springs for BMW F800GS *50 mm lowering* 01-040-7438-0
=> Changing just a single component does not result in optimal riding behaviour.

Features of the Touratech Suspension Plug & Travel shock:
=> The shock housing is made of aluminium.
*** This results in lowest possible weight.
=> All assemblies and components are designed for intensive use with heavy touring motorcycles.
=> Large 16 mm piston rod made of chromium-molybdenum steel for maximum stability and durability
=> Fitted with special low-friction seals.
*** This results in very low wear and long durability of the shock.
=> The suspension spacer is fitted with sturdy stainless steel bushes for the fastening screws.
*** This gives the fastening screw a firm. backlash-free fit. even at highest loads.
=> Touratech Suspension stepping motor. developed for us by Tractive. is integrated into the shockabsorber.
=> All setting options of the BMW ESA are retained in full.
=> The Touratech Plug & Travel shock is operated via the original BMW hand controls.
* On the right handlebar: the settings - Comfort - Normal Sport.
* As accustomed. the riding mode can be selected during riding to give the best level of comfort.
=> Special Touratech setup for balance. damping and rebound.
*** This results in high. precise damping performance even at high damping frequencies (poor roads. tracks).
=> Unique robust hydraulic "Extreme" spring pre-tension via an easy accessible positioned hand wheel.
*** Based on numerous kilometres of travel and the experiences gained by the Touratech Race Team on its missions.
=> Bottoming control with secondary compression dampening technology which prevents bottoming
*** out. The (PDS) Position-dependant Dampening System is like a hydraulic pillow at the end of the stroke.
=> QR barcode on the shock housing with individual shock information.
*** This enables easy call-up of shock-specific information by scanning with a Smartphone.
*** Information on the basic setting of the shock can be called up at any time. Reset is possible for incorrect setting.
=> The Plug & Travel suspension shock for the BMW ESA is fully service-enabled. This allows permanent maximum ride dynamics.



The installed basic setup is set for riders up to 100 kg including travel luggage. Adjustment for considerably higher loads or other exceptional requirements is possible. The shockabsorber is then customised by us to your requirements using a spring with a higher spring rate and other configurations. Please use our chassis check form and send us the
filled in form.

Do you have further questions? We are pleased to offer you advice personally contact us
More Information
Weight 5.642000
Model F800GS
Colour Black/White
Manufacturer Touratech
Model year from 2013
Bike Manufacturer BMW
Function Handling
Product Manual Instruction Manual - Download Here
