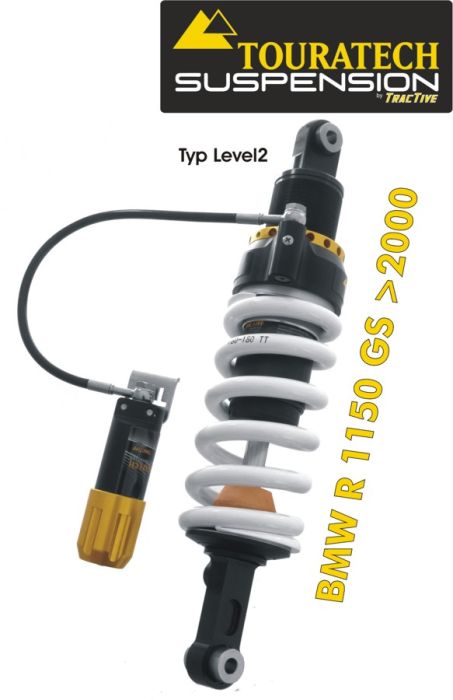

Touratech Suspension *rear* shock absorber for BMW R1150GS from 2000 type *Level 2*
Facts at a glance:
=> This shock absorber is configured and adjusted ready for use based on our experience with the BMW R1150GS.
=> The parameters are: vehicle weight / shock absorber pivot point / design constraints / test rides.
=> This shock absorber is designed for a riderâ€™s weight including luggage of up to 100 kg.
=> As with all suspension solutions. the rear and front of the motorbike should be modified together.
=> The matching component for the front of the BMW R1150GS from 2000 is the
=> Touratech Suspension *front* shock absorber for BMW R1150GS type *Level 1* 01-040-5877-0
If only one component is changed. optimal handling will not be achieved.
A shock absorber that makes it easy and convenient to adjust your bike for different loading conditions.
Characteristics of the Touratech Suspension Level 2 shock absorber:
=> The shock absorber body is made of aluminium.
*** This keeps its weight to a minimum.
=> Special low-friction seals are fitted.
*** As a result. there is very little wear and the shock absorber has a long service life.
=> Strong stainless steel bushings for the securing bolts are fitted to the spring eye.
*** They make sure the securing bolt is seated firmly with no play even under maximum loads.
=> All assemblies and components are designed for intense use on heavy touring motorcycles.
=> The damper settings were developed in line with Touratechâ€™s experience and requirements.
*** They are based on many miles travelled and experiences gained from use by the Touratech Race Team.
=> Floating piston design. The floating piston separates the damping fluids â€“ oil and nitrogen â€“ allowing them to work separately.
*** Finer shock absorber response.
*** Precise. high-performance damping even with very high damping frequency (bad roads. dirt tracks).
*** Shock absorber cools better.
*** Minimal restrictions for the shock absorberâ€™s fitting position on the motorbike.
=> High End hydraulic preload via an easily accessible. well positioned hand wheel.
=> QR barcode on the shock absorber contains individual shock absorber data.
*** Simply scan with a smartphone to access the specific information for the shock absorber.
*** Information on the shock absorberâ€™s factory settings is always available. Can be reset if incorrectly adjusted.
The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible
for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage. In this case.
we individually modify the shock absorber to meet your needs by fitting a spring with a higher spring rate.
Please fill out our suspension check form and send it back to us.
If you have any further questions. we will be happy to advise you.
|Model year from||2000|
|Product Manual||Instruction Manual - Download Here|
