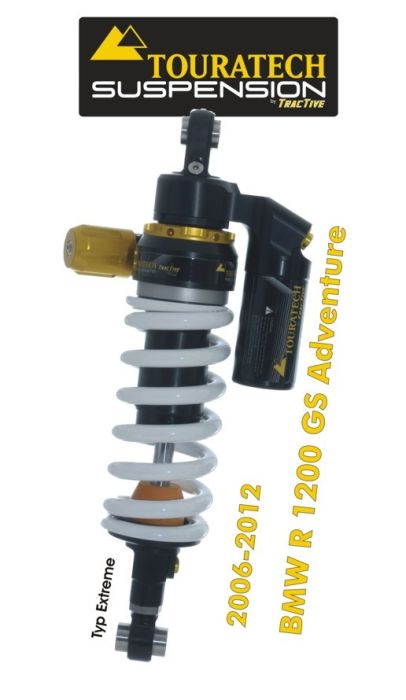

Touratech Suspension *rear* shock absorber for BMW R1200GS ADV (2006-2013) type *Extreme*
For you. this means that the Extreme adjustment range can accommodate any luggage volume from a tail bag to a fully loaded luggage system and/or pillion passenger. You can easily and quickly restore the bike's balance via a hand wheel that adjusts the spring preload. The very fine damping adjustment on the external reservoir lets you adjust the suspension effectively and precisely to suit your personal riding style at any time. on any condition of road. and for any purpose â€“ whether motorways. main roads. winding country lanes. off-road sections. long-distance travel with lots of luggage or for a snappy. daring riding style.
Length adjustment rounds out the premium specifications of our Extreme shock absorber. The8 mm adjustment range lets you make fundamental adjustments to the balance of your motorbike to allow for modifications such as different wheel sizes.
You will experience a completely new ride feel on your motorbike.
Facts at a glance:
=> This shock absorber is configured and adjusted ready for use based on our experience with the BMW R1200GS Adventure.
=> The parameters are: vehicle weight / shock absorber pivot point / design constraints / test rides.
=> This shock absorber is designed for a rider's weight including luggage of up to 100 kg.
=> Shock absorber length adjustable by 8 mm (- 2 mm / + 6 mm).
*** This shock absorber can also be modified for special conversions. e.g. smaller road wheels.
=> As with all suspension solutions. the rear and front of the motorbike should be modified together.
=> In this case. the matching component for the front of the BMW R1200GS Adventure is the
=> Touratech Suspension *front* shock absorber for BMW R1200GS ADV >2006 type *Level1* 01-044-5877-0
=> If only one component is changed. optimal handling will not be achieved.
Characteristics of the Touratech Suspension Extreme shock absorber:
=> The shock absorber body is made of aluminium.
*** This keeps its weight to a minimum.
=> All assemblies and components are designed for intense use on heavy touring motorcycles.
=> Special low-friction seals are fitted.
*** As a result. there is very little wear and the shock absorber has a long service life.
=> Strong stainless steel bushings for the securing bolts are fitted to the spring eye.
*** They make sure the securing bolt is seated firmly with no play even under maximum loads.
=> Floating piston design. The floating piston separates the damping fluids â€“ oil and nitrogen â€“ allowing them to work separately.
*** As a result. the shock absorber response is finer.
*** Precise. high-performance damping even with very high damping frequency (bad roads. dirt tracks).
*** Shock absorber cools better.
*** Minimal restrictions for the shock absorber's fitting position on the motorbike.
=> Extreme type: shock absorber length adjustable by 8 mm (- 2 mm / + 6 mm).
*** This enables fundamental adjustments to the balance of the motorbike and
*** the motorbike can be modified for special conversions or an extreme setup.
=> Hydraulic Extreme preload via an easily accessible. well positioned hand wheel.
=> The damper settings were developed in line with Touratech's experience and requirements.
*** They are based on many miles travelled and experiences gained from use by the Touratech Race Team.
=> Extreme compression damping adjustment always has separate high speed and low speed settings.
*** This allows highly individual compression/rebound adjustment. Perfect adaptability to changing requirements.
=> Separate Extreme external reservoir in the shock absorber's damping assembly.
*** Means shock absorber system cools better when riding.
*** Gives the shock absorber greater resilience and a longer service life.
=> QR barcode on the shock absorber contains individual shock absorber data.
*** Simply scan with a smartphone to access the specific information for the shock absorber.
*** Information on the shock absorber's factory settings is always available. Can be reset if incorrectly adjusted.
The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible
for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage. In this case.
we individually modify the shock absorber to meet your needs by fitting a spring with a higher spring rate.
Please fill out our suspension check form and send it back to us.
If you have any further questions. we will be happy to advise you.
|Model year up to||2013|
|Model year from||2006|
|Product Manual||Instruction Manual - Download Here|
