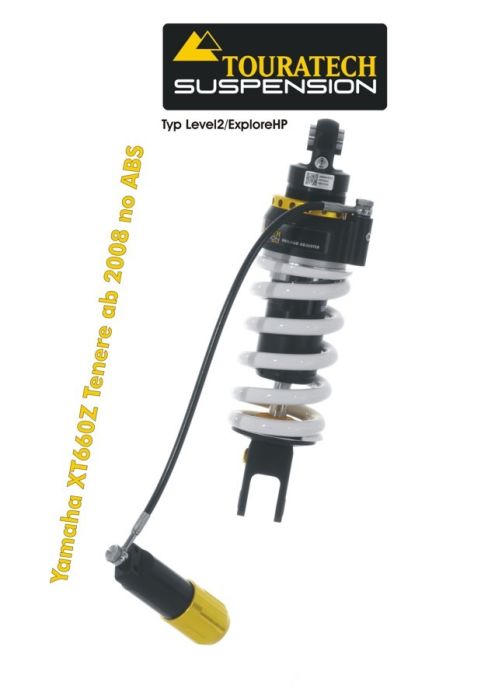

Touratech Suspension shock absorber for Yamaha XT660Z Tenere (no ABS) from 2008 Type Level2/ExploreHP
The new dimension of chassis for your Yamaha XT660Z Tenere.
Most important features:
=> The shock absorber is configured on the basis of our experience with the Yamaha XT660Z Tenere and is set "ready-to-ride".
=> Parameters include weight of the vehicle / pivot of the shock absorber / constructional conditions / test rides.
=> The shock absorber described here is designed for up to 100 kg weight of the rider including travel luggage.
=> The rear and front sections of the motorcycle should be adjusted for all chassis solutions.
Properties of the Touratech Suspension Level2/Explore HP shock absorber:
=> The shock absorber housing is made of aluminium.
*** This results in lowest possible weight.
=> Fitted with special low-friction seals with integrated Teflon back-up ring for low
*** wear and long durability of the shock absorber.
=> Emulsion construction and finer responses of the shock absorber.
=> Large 16 mm piston rod made of chromium-molybdenum steel for maximum stability and durability
=> 38 mm damping piston with special Touratech setup.
=> The suspension spacer is fitted with sturdy stainless steel bushings for the fastening screws.
*** This gives the fastening screw a firm. backlash-free fit. even at highest loads.
- All assemblies and components are designed for intensive touring use.
=> High End hydraulic preload via an easily accessible. well positioned hand wheel.
=> QR barcode on the shock absorber with individual shock absorber information.
*** This enables easy call-up of shock absorber-specific information by scanning with a Smartphone.
*** Information on the basic setting of the shock absorber can be called up at any time. Reset is possible for incorrect setting.
=> Fully service-enabled. This allows permanent maximum ride dynamics.
The basic setup fitted here is designed for riders up to 100 kg including luggage. Modifications are possible
for a heavier rider (more than 100 kg) and/or if the bike is usually ridden with a passenger / with luggage. In this case.
we individually modify the shock absorber to meet your needs by fitting a spring with a higher spring rate.
Please fill out our suspension check form and send it back to us.
Scope of delivery:
- Ready-to-mount shock absorber.
- General Operating License
- Mounting instructions / user manual
If you have any further questions. we will be happy to advise you.
Weight | 4.606000 |
---|---|
Model | XT660Z |
Colour | Black/White |
Manufacturer | Touratech |
Model year from | 2008 |
Bike Manufacturer | Yamaha |
Function | Handling |
Product Manual | Instruction Manual - Download Here |
